Koaxiální kabel vnější závěsný CAVEL DG113 PEM, 6,8mm, prodej na metry

Cena za 1m

RG Ref. RG 6+
Class CPR acc. to UE 305/2011 (DOP) FCA
acc. to Standard EN 50117-2-5

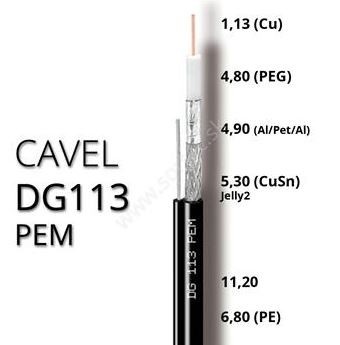

CONSTRUCTION DATA
Inner Conductor O mm 1,13
material Cu
Dielectric O mm 4,80
material PEG
Film Foil Laminate material APA
Braid material CuSn
Braid Optical Coverage% 72
Diameter over Braid O mm 5,12
Outer Sheath O mm 6,8x11,2
material PE
PHYSICAL DATA
Copper Content kg / km 19,2
Cable Weight kg / km 60,3
Min bending radius x 1 / n mm 35/70
Max.Tensile Strength N 150
Fire Load MJ / km 1299
kWh / km 361
ELECTRICAL DATA
Impedance Ohm 75 ± 3 @ 200 MHz
Capacitance (@ 1kHz) pF / m 52 ± 2
Velocity Ratio% 85
Attenuation (at 20 ° C)
at 5 MHz dB / 100m 1,6
at 10 MHz dB / 100m 2,3
at 30 MHz dB / 100m 3,2
at 50 MHz dB / 100m 4,1
at 200 MHz dB / 100m 8,0
at 300 MHz dB / 100m 9,8
at 470 MHz dB / 100m 12,4
at 862 MHz dB / 100m 17,1
at 1000 MHz dB / 100m 18,5
at 1750 MHz dB / 100m 24,9
at 2150 MHz dB / 100m 27,9
at 2400 MHz dB / 100m 29,6
at 3000 MHz dB / 100m 33,4
Structural return loss (SRL)
at 5 - 470 MHz dB> 30
at 470 - 1000 MHz dB> 28
at 1000 - 2000 MHz dB> 26
at 2000 - 3000 MHz dB> 22
Shield Transfer Impedance (Zt) Class A
5 - 30 MHz mOhm / m <5
Screening Attenuation (SA) Class A +
at 30 - 1000 MHz dB> 95
at 1000 - 2000 MHz dB> 85
at 2000 - 3000 MHz dB> 75
Inner conductor resistance Ohm / km 18,0 / 13,9
Loop resistance Ohm / km 31,9
Sheat Insulation voltage (spark test) kV 5,0
Maximum current (Ieff) A 8
